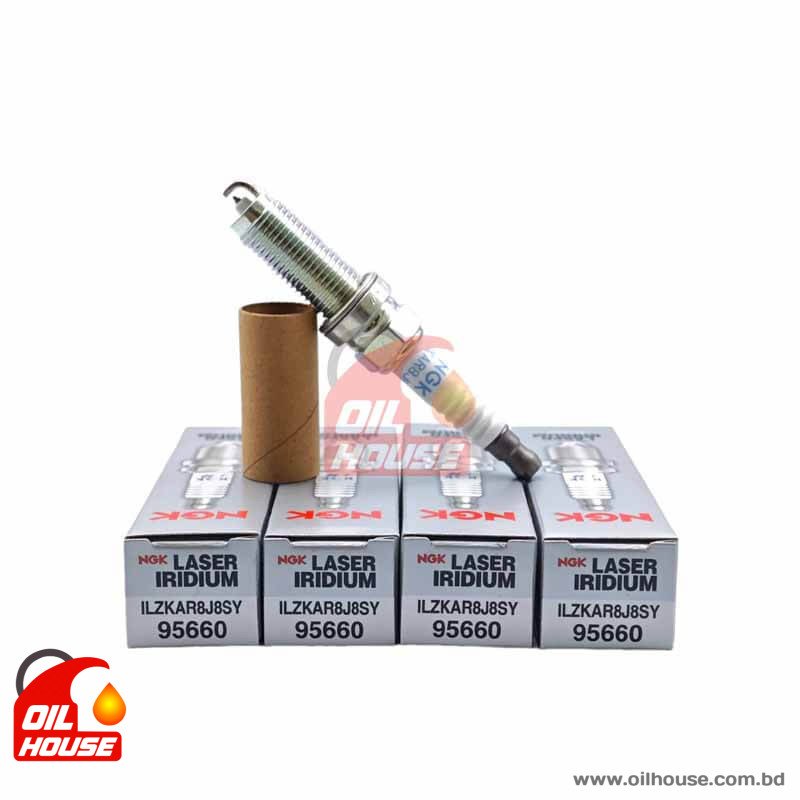

NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS)

Description

Step up to elite combustion control with the genuine, high-performance NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS). Designed to meet the stringent technical requirements of next-generation downsized turbocharged engines, this Laser Iridium series provides the ultimate defense against extreme cylinder temperatures and pre-ignition risks.

By utilizing a fine-wire Iridium center core paired with a laser-welded platinum chip on the ground electrode, it creates an exceptionally resilient firing gap that completely resists electrical erosion. This advanced dual-precious metal configuration lowers the overall voltage demand on your ignition coils, ensuring quick cold-starts, a completely stable engine idle, and immediate throttle execution when building boost.

Key Features of NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS):

• Laser-Welded Dual Precious Metal: Features a continuous-weld Iridium center tip and a platinum ground electrode pad, completely locking the pre-set spark gap against widening under heavy load.
• Colder Heat Range 8 Rating: Engineered with a specialized high-heat dissipation ceramic insulator, making it perfect for preventing dangerous engine knocking or detonation in turbocharged and tuned setups.
• Anti-Seize Trivalent Metal Plating: The shell is treated with an advanced machine-rolled zinc-chromate coating, ensuring superior moisture protection and preventing the threads from seizing inside aluminum cylinder heads.
• Extended Ultra-Long Reach Profile: Designed with an advanced long-thread architecture to position the spark precisely within modern, direct-injection combustion chamber boundaries.

Why Choose NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS)?

Modern turbocharged direct-injection vehicles running daily in Bangladesh face intense operating stress due to heavy traffic congestion, high ambient heat, and volatile fuel quality variations. These harsh conditions quickly degrade standard plugs, causing severe carbon fouling, engine misfires, and noticeable power loss under acceleration.

Upgrading to the authentic NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS) from Oil House Bangladesh ensures your engine safely extracts maximum performance from local fuel. It delivers complete fuel atomization, preventing unburnt fuel deposits from contaminating your catalytic converter and maximizing your total mileage.

Technical Specifications:

• Product Name: NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS)
• Engineering Code: ILZKAR8J8SY / Stock No. 95660
• Country of Origin: Made in Japan
• Thread Diameter: 12mm (Bi-Hex/Specialized Slim Design)
• Thread Length (Reach): 26.5mm (Extended Ultra-Long Reach Specification)
• Hex Drive Size: 14mm Bi-Hex (12-Point Socket Profile)
• Pre-Set Factory Gap: 0.8mm (Precisely Calibrated Pre-Gap)
• Electrode Type: Fine-Wire Laser Iridium with Platinum Ground Chip
• Package Quantity: 4 Pieces (Matched Performance Fleet Set)

Application Instructions for NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS):

1. Safely park the vehicle, switch off the ignition, and allow the engine block to cool down completely before beginning installation.
2. Unbolt and carefully pull the individual direct ignition coil packs vertically out of the deep spark plug tubes.
3. Use a compressed air line to blow away any hidden sand, dust, or micro debris around the cylinder entry points.
4. Slowly extract the old spark plugs counter-clockwise using a specialized 14mm Bi-Hex (12-point) spark plug socket tool.
5. Thread the new NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS) units into place by hand clockwise first to eliminate any risk of cross-threading.
6. Use a calibrated torque wrench to final-tighten the plugs to exactly 15–20 Nm to secure a safe mechanical seal against the aluminum head.
7. Reattach the coil packs, fasten the holding bolts, reconnect the harness clips, and start the vehicle to check for a smooth, balanced idle.

Vehicle Applications :

• Honda Civic Turbo (2016–2022+) | Engine: L15B7 / L15C (1.5L VTEC Turbo – FC, FK, FE, FL Chassis)
• Honda CR-V Turbo (2017–2023+) | Engine: L15B7 (1.5L Turbo – RW1, RW2, RT Series)
• Honda Accord Turbo (2018–2022+) | Engine: L15H / L15BY (1.5L VTEC Turbo – CV1 Chassis)
• Honda HR-V / Vezel Turbo (2019–2023+) | Engine: L15V (1.5L Turbo Platforms)
• Honda Stepwgn / Jade Turbo (2015–2022) | Engine: L15B Turbo (RP3, RP4, FR5 Series)

Alternative Interchanges (Cross Reference):

• Honda Genuine OEM: 12290-59B-11 / 12290-59B-J01 / 12290-64A-A01
• NGK Alternative Code: ILZKAR8H8S / DILZKAR8H8S
• Denso Equivalent: DXE22HQR-D11S / SXE24HCR8

Critical Fitment Note: This plug features a highly specialized M12 thread diameter with an ultra-long 26.5mm reach and requires a 14mm 12-point (Bi-Hex) socket. It will not fit older engine models that use traditional 16mm hex plugs or standard M14 thread dimensions. Please confirm your engine code or consult with our team before purchasing to guarantee absolute fitment.

Maintenance Tip from Oil House Bangladesh:

Modern turbocharged direct-injection platforms put extreme structural and electrical demands on spark plugs due to the immense cylinder pressures generated under boost. Operating within the heavy stop-and-go traffic conditions of Bangladesh can accelerate carbon accumulation along the plug’s ceramic insulator.

To maintain peak turbo responsiveness, prevent high-RPM ignition blow-out, and safeguard your ignition coils from premature failure, we highly recommend replacing your NGK LASER IRIDIUM ILZKAR8J8SY SPARK PLUG (4PCS) set every 45,000 km to 50,000 km. Always verify during installation that your spark plug tube walls are completely bone-dry and free from any engine oil weeping down from the upper valve cover packings.
