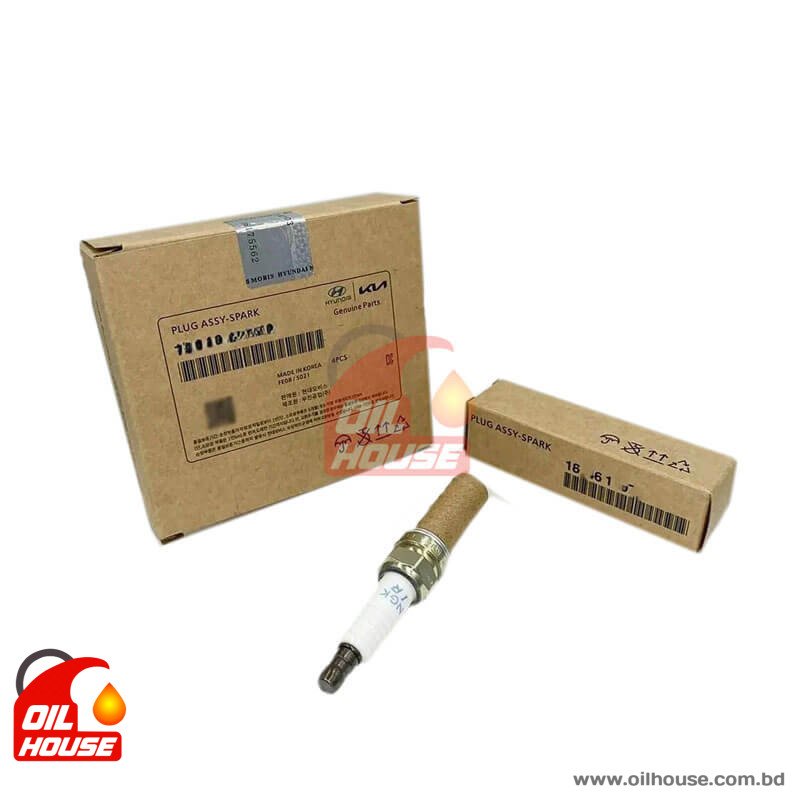

HYUNDAI OEM SPARK PLUG 18840-11051 (4PCS)

Hyundai OEM 18840-11051 – Authentic Laser Iridium Ignition Precision for Heavy-Duty Passenger and SUV Powerplants

For premium Korean luxury sedans, family crossovers, compact SUVs, and heavy-load passenger microbuses whose owners refuse to compromise on solid cold-start responses, absolute fuel atomization boundaries, and continuous idling torque lines, the HYUNDAI OEM SPARK PLUG 18840-11051 (4PCS) provides professional-grade ignition mechanics. Sourced directly as the factory original equipment (OE) specification co-developed by NGK under the ILFR5B11 premium dual-precious metal index, this kit features an optimized thermal dissipation core. It is custom-tailored to withstand the massive operational cycles and localized head stress profiles of modern Theta and V6 multi-valve blocks, completely eliminating high-voltage grounding paths or early spark blowout.

Key Features of HYUNDAI OEM SPARK PLUG 18840-11051 (4PCS):

• Factory Genuine OEM Calibrations: Sourced through original Mobis factory pipelines to assure absolute quality threshold limits, uniform terminal connection tolerances, and direct component longevity.
• NGK ILFR5B11 Laser Iridium Sizing: Engineered with a microscopic fine-wire Iridium center electrode tip laser-welded alongside a permanent Platinum ground pad inlay, preventing early electrical gap widening under continuous work strain.
• Stable Heat Range 5 Sizing: Formulated as a reliable thermal dissipation layout to rapidly burn away soft carbon fouling deposits during extended bumper-to-bumper idling while preventing high-speed pre-ignition anomalies.
• Precision Machine-Rolled Anti-Seize Threads: Finished with a robust anti-seize plating treatment that safely blocks humidity moisture, eliminates cylinder head cross-threading friction, and secures seamless extraction lines during future replacement intervals.

Why Choose HYUNDAI OEM SPARK PLUG 18840-11051 (4PCS)?

The prolonged traffic congestion tracks, high ambient temperatures, and variable fuel octane volatilities found across Bangladesh put continuous strain on utility crossover lines and multi-passenger commercial blocks like the Tucson, Sportage, or Starex. Running wrong thread depth configurations or cheap sub-standard alternatives triggers immediate cylinder tracking errors, severe loss of fuel thrift, annoying chassis vibration ripples, or quick engine overheating trends. The HYUNDAI OEM SPARK PLUG 18840-11051 (4PCS) available at Oil House Bangladesh keeps your engine operating within its exact factory design limits, keeping your performance curve seamless, ultra-quiet, and fully responsive.

Technical Specifications:

• Product Name: HYUNDAI OEM SPARK PLUG 18840-11051 (4PCS)
• OEM Part Number: 18840-11051
• NGK Production Code: ILFR5B11 (Stock No. 1637)
• Thread Diameter: 14mm
• Thread Reach: 26.5mm
• Hex Socket Profile: 16mm
• Pre-Set Factory Gap: 1.1mm
• Package Quantity: 4 Pieces (Matched Performance Set)

Application Instructions

1. Park the vehicle on level ground, shift into park, shut off the engine completely, and let the motor bay cool down entirely before tool contact.
2. Unfasten the upper plastic acoustic engine vanity insulation shield to expose the high-tension direct coil rows.
3. Carefully unclip the individual locking electrical harness clips from the primary coil module bodies.
4. Extract the retaining anchor bolts, then pull each individual ignition coil vertically upward out from the plug well tubes.
5. Use compressed air lines to blow out any hidden dust, dirt particles, or foreign debris inside the deep tubes before unscrewing the old plugs.
6. Loosen and extract the worn spark plugs counter-clockwise using a proper magnetic 16mm spark plug socket.
7. Hand-thread the new HYUNDAI OEM SPARK PLUG 18840-11051 (4PCS) clockwise to guarantee clean thread tracking, then torque to exactly 25–28 Nm (do not over-tighten).
8. Reseat the ignition coils down firmly, torque down the holding bolts, lock on the harness connectors, run the car, and confirm a crisp, solid engine baseline idle line.

Vehicle Applications:

Alternative Interchanges (Cross Reference):

This premium high-performance ignition component replaces and maps with the following target specifications:

• Hyundai / Kia Factory OEM: 18840-11051 / 18850-11050 / 27410-3C000
• NGK Series: ILFR5B11 (Stock Code 1637)
• Denso Upgraded Series: IKH16TT (Iridium TT / Iridium Tough Match) / VKH16

Note: Fitment depends entirely on your exact engine block code and chassis line variables. This plug features an M14 thread layout configuration with a standard 16mm Hex base shell structure—specifically mapping with the naturally aspirated Theta systems in the Tucson series—and will not map with newer direct-injected GDI/T-GDI turbo blocks or smaller 12mm thread space blocks. Please share your chassis number with us to verify configuration compatibility before placing your order.

Maintenance Tip from Oil House Bangladesh:

High-capacity crossover platforms like the Hyundai Tucson running Theta multi-valve platforms operating inside city terrains generate substantial continuous operational heat, causing accelerated electrical contact stress over prolonged periods. Under the intense stop-and-go road congestion gridlocks, high ambient atmospheric humidity, and varying fuel octane qualities found across Bangladesh, spark clearance levels face relentless micro-erosion forces. To guarantee instant overtaking throttle line responses, maintain a velvety-smooth chassis idle line, and save your primary high-tension ignition coil packs from early insulation failure, we highly recommend replacing your HYUNDAI OEM SPARK PLUG 18840-11051 (4PCS) between 50,000 km to 60,000 km in local driving zones. Always check that the internal spark plug tube wells are completely dry and free from any valve cover motor oil wet spots during your regular vehicle maintenance routines.
